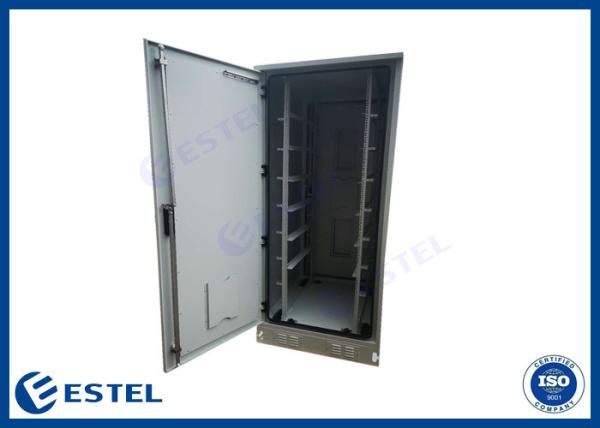

Double Wall Outdoor Telecom Enclosure Waterproof Communication Cabinet
Doble Wall Insulated Outdoor Telecom Enclosure 40U 19 Inch Rack Waterproof Communication Cabinet
1. Our main products
-- Cabinet and Rack such as outdoor Telecom enclosure, Battery cabinet, rectifier cabinet, fiber optic cabinet, distribution cabinet, distribution box, electrical cabinet, IT rack. Serve rack etc.
-- Cooling system: Heat exchanger, air conditioner, Thermoelectric cooler
-- Enviromental monitoring system,support SNMP communication
-- Rectifier system
2. Application scenarios and industries of outdoor telecom enclosure
- Wireless network base station;
- Power cabinet
- Transmission cabinet
- Data communication cabinet
- IT&Network system
- Power supply
- Telecommunication
- Solar Energy
- Energy saving
- Radio
- 3G/4G/5G network
3. Technical sheet of outdoor communication cabinet
| No. | Description | Specification |
| Specification of cabinet |
| 1 | Code | ET80100200-EQ-2D |
| 2 | Cabinet External Size | W×D×H 800×1000×2000mm |
| 3 | Internal structure | Include 40U 19" rack and L-shaped support |
| 4 | Door | One front door and one back door |
| 5 | Lock | Outdoor special anti-theft three point lock |
| 6 | Panel Material | Galvanized steel, double wall, with heat insulation |
| 7 | Surface Treatment | Outdoor anti-corrosion powder coating |
| 8 | Cabinet Installation method | Ground mount |
| 9 | Cable Entry | Located on the bottom |
| 10 | Lifting Ear Number | 4 |
| 11 | Earthing | Grounding copper bar |
| 12 | Operation Temperature | -40°C～+75°C |
| 13 | Protection Level | IP65 |
| 14 | Relative Humidity | 5% ~ 100% |
| 15 | Atmospheric Pressure | 62kpa ~ 101kpa (similar to 0m ~ 5000m altitude) |
| 16 | Solar Radiation Intensity | 1120 ×(1±5%)W/m2 |
| Cooling |
| 1 | Air conditioner | AC220V 50Hz 500W, 2 pcs |
| Packing |
Wooded case. If the cabinet with air conditioner.
The case muse be vertically standing loaded |
| Wooden Case Size | W×D×H 910×1150×2200mm |
| Net Weight | 230KG |
| Gross Weight | 308KG |
4. Feature
(1) The embedded structure door enhances the anti-theft effect.
(2) Standard 19 inch rack.
(3) High protection grade IP55, waterproof and dustproof, effectively protect the equipment in the cabinet.
(4) The cabinet adopts three-point lock to prevent illegal entry.
(5) Both roof front and roof back have overhang design.
(6) High reliability, maintenance free, fast assembly, suitable for harsh outdoor environment
(7) High integration, less land occupation, short construction period, effectively reduce the construction cost
(8) Perfect thermal design, efficient energy saving and emission reduction, effectively reduce operating costs
(9) It supports rapid assembly and assembly, and is suitable for multi scene installation on the top of mountain and building
5. Advantage
- Multi-stage cleaning and pre-treatment prior to the application of a 120micron powder coating
- The cabinet structure have earthquake resistance function
- Waterproof, anti-corrosion, anti sand and anti ultraviolet, ensure cabinet can work longer in a harsh outdoor environment
- Thermal insulation materials with fire retardant characteristics are adopted
- The front and rear doors are easier to install and maintain.
- Compared with the traditional base station room, the new outdoor integrated cabinet is compact and solid, with reasonable space layout, greatly reducing the construction cost

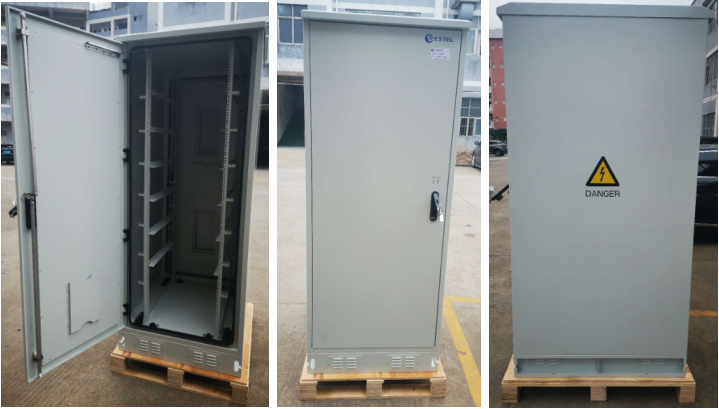

6. Outdoor telecom enclosure picture

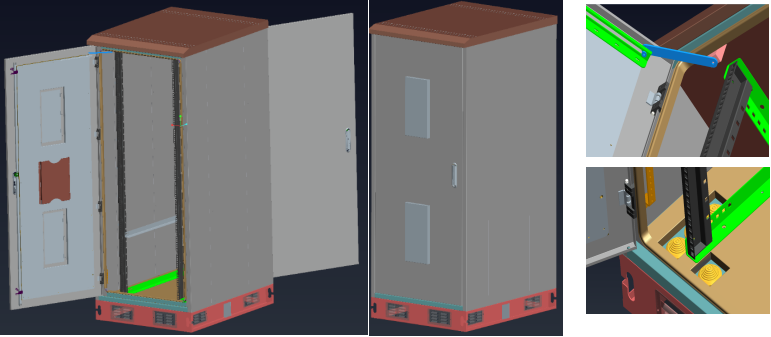

7. 3D Drawing Details

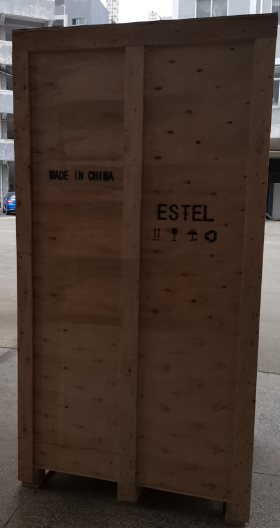

8. Package
Standard export wooden packing to ensure the goods in good condition.
