Three Point Lock IP55 20mm PEF Outdoor Battery Cabinet

Brand Name : ESTEL

Model Number : ET9090210-BA

Certification : ISO9001

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 sets per month

Delivery Time : 30 days

Packaging Details : Wooden case with pallet

Color : Grey

Battery Shelf No. : 4 battery shelves

Material : Steel

Structure : Double skin with insulation

Ingress Protection : IP55

Lock : Antitheft three point lock

Contact Now

IP55 Waterproof Outdoor Battery Cabinet with 4 Battery Shelves,

Air Conditioner Cooling, Antitheft Lock

1. Introduction
The outdoor battery cabinet is used for outdoor telecom base station, to hold batteries. The batteries supply backup power to telecom equipments in case of grid off.
The outdoor battery cabinet keep the batteries safe from weather and safe from theft. The battery cabinet also feature locking machanisms that prevent unauthorized people from tampering with the cabinet.
This outdoor battery cabinet is big size cabinet, usually is ground mounted.
2. Specifications
Structure Dimension External Dimension: W×D×H 900×900×2100mm
Layout Four battery shelves for installing 4 strings of lead acid batteries.
Material Steel, double skins with thermal insulation
Thermal Insulation 20mm thick PEF
Door One front door
Lock Three point lock, padlockable
Ingress Protection IP55
Door Stopper Door stopper can keep the door open up to 120 degree
Grounding Copper bar
Cable Access Bottom access

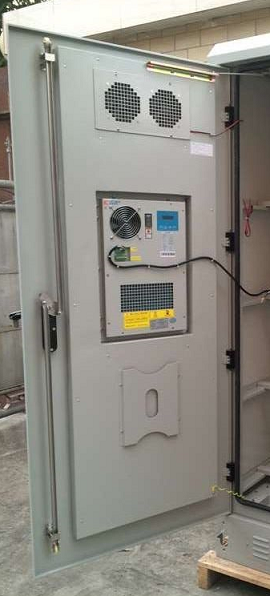

Cooling Air Conditioner

Input voltage: -48VDC

Cooling capacity: 500W
Fan -48VDC
Others Lighting -48VDC LED lamp
Door Switch For sending open door alarm
3. Features

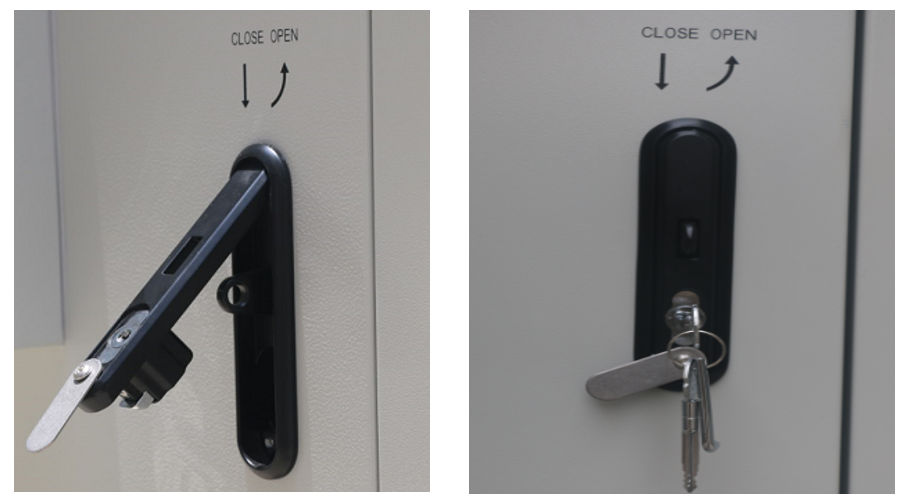

3.1 Door lock theft proof design

(1) Damage resistance of the theft proof lock meets GA/T 73-1994 “Mechanical Anti-theft Lock” class B requirement, supporting padlock.

Three Point Lock IP55 20mm PEF Outdoor Battery Cabinet

(2) Three point lock

Three Point Lock IP55 20mm PEF Outdoor Battery Cabinet

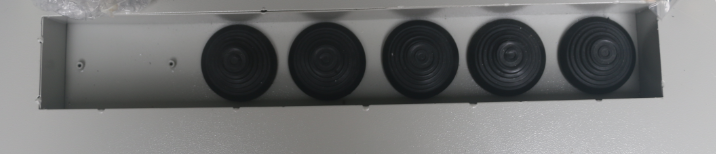

3.2 Cable Entry


External cables can go into the cabinet through the cable entry at bottom of the cabinet.

Three Point Lock IP55 20mm PEF Outdoor Battery Cabinet

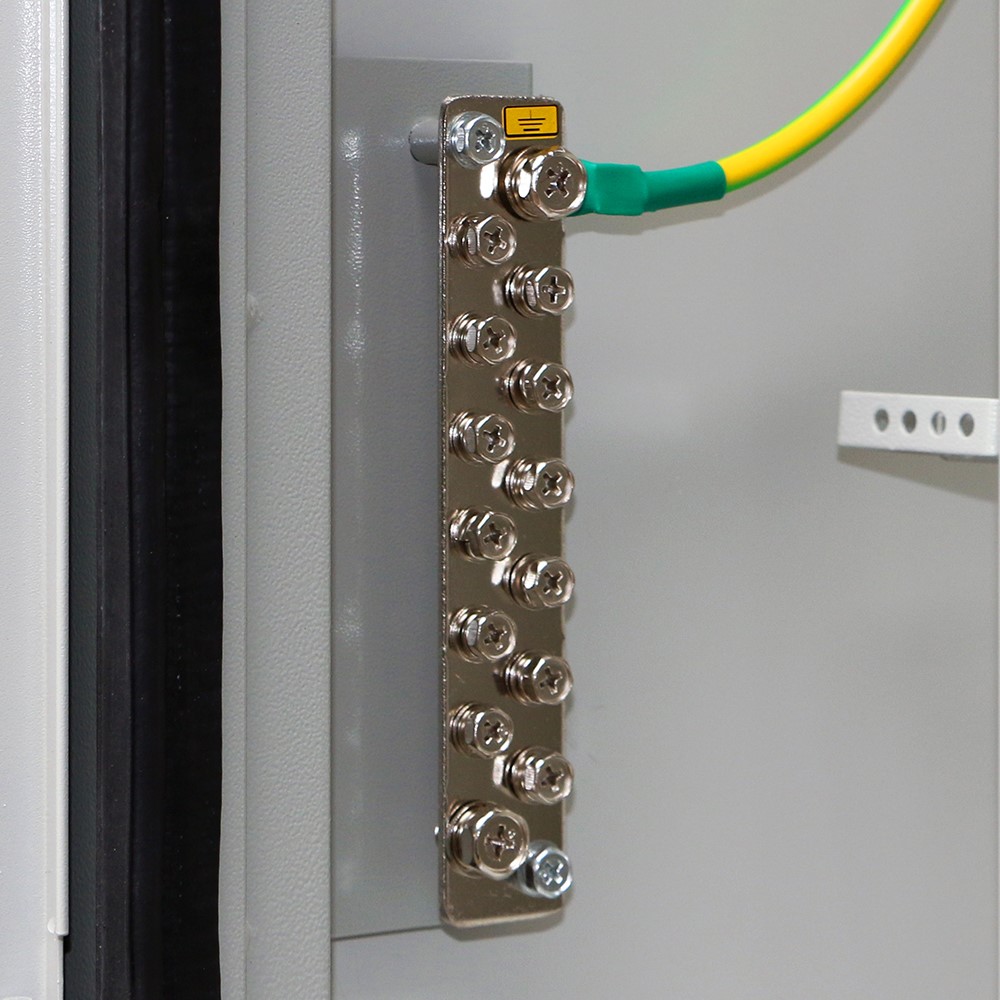

3.3 Grounding Protection


The cabinet includes grounding copper bar with anti-corrosion coating. There are enough screws for wiring connection terminals.

Three Point Lock IP55 20mm PEF Outdoor Battery Cabinet
